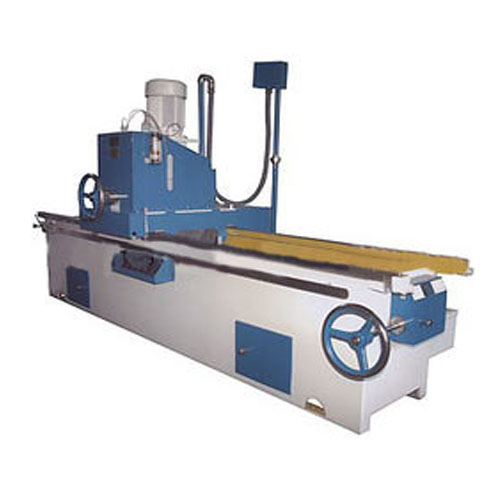

This machine is necessary equipment for trade of working. It is composed of machine body,grinding head and electromagnetic chuck,etc.
Special Features:

Machine Bed : Welded, Modular construction principle

Guideways : Hardened and steel bands for main and side guides, easily exchangeable

Machine table : Fixed for flat grinding with total table coverage, in Electro - magnetic design or as cast iron table with 'T' slots & clamps.

Electro - Magnetic swiveling table for flat, bevel and multistage grinding, in one setting up operation, swiveling 360 degrees, multiple bearing points with large diameter journals for maximum rigidity. Additional clamping sides with 'T' slots & clamps. Swiveling table in cast iron for mechanical clamping. Mechanically table locking by hand.

Grinding Head Carriage : Heavy casting mounting on four reels with eight New - departure dust proof ball bearings which act as rollers. Four reels guide the carriage in the carriage ways of the bed. The sliding base, mounted on top of the carriage, is adjustable to feed the grinding segmental or cup-wheel to the knife can be ground either straight or concave as paper knives require only 5 degrees swivel of motor base.

Down-feed for Grinding Tool: Multiple spindle system for play and weight equalization.

Grinding motor: SIEMENS or NGEF Brand.

Grinding Head: Cylindrical type bonded to flange for light grinders, segmental heads for heavy grinding machines. To ensure vibration-free running, all grinding wheel flanges and segmental heads are fitted with adjustable balancing weights. For obtaining maximum segment use, patented segment savers can be used.

Cooling System: Water tank attached with the machine. Cooling fluid application by the electro-coolant pump.

Electrical Unit: All electrical controls are housed in the master panel board.
