Corrugated Board and Box Making Machines
We are one among the top manufacturers and exporters of a vast array of Corrugated Board and Box Making Machines. These machines can be availed with customization as well. Our clients can yield the best out of these machines owing to their great accuracy and long service life.

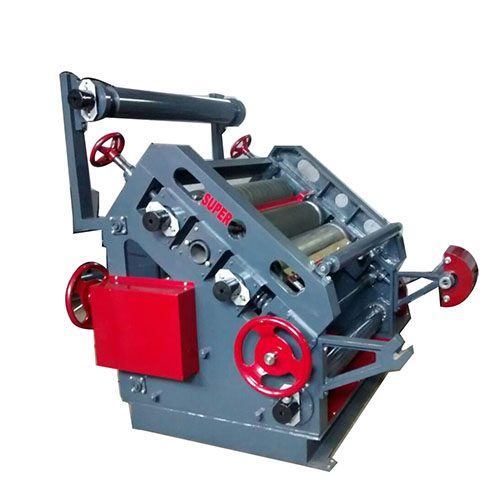

Oblique Type Single Face Paper Corrugating Machine
This oblique type High Speed model offers a high rate of production on the roller bearing for smooth running and longer life. The machine is fitted with gear box which runs in oil bath. The machine is provided with motorized self loading twin shaft reel stand .
Optional -: Variable speed drive
| Size | Motor (H.P.) | Heating Load | Output RFT/minute |
42" (1067 mm) |
5 H.P |
31 KW |
120 |
| 45" (1143 mm) | 5 H.P | 31 KW | 120 |
| 52" (1320 mm) | 7.5 H.P | 33 KW | 110 |
| 62" (1575 mm) | 10 H.p | 35 KW | 100 |

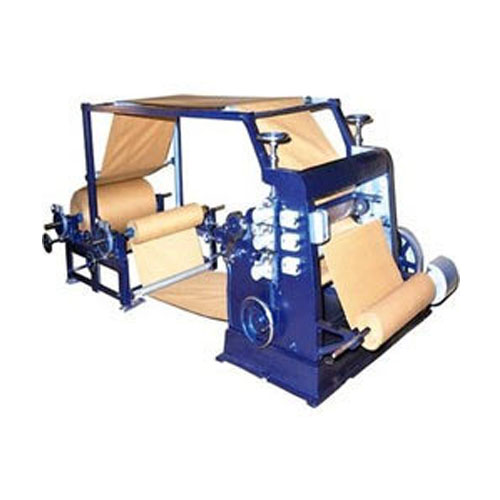

Vertical Type Single Face Corrugating Machine
This is vertical type single face paper corrugating machine. The flute rolls are perfectly finished thereby giving an even impression on the board. The machine is sturdy in 2 construction, simple to operate and easy to handle. Manually lifting twin shaft Reel Stand with three unwinding shafts is provided with the machine.
Technical Data:
| Size | Motor (H.P.) | Heating Load | Output RFT/minute |
| 42" (1066 mm) | 3 | 21 KW | 60 |
| 45" (1143 mm) | 3 | 21 KW | 60 |
| 52" (1320 mm) | 5 | 27 KW | 60 |
| 62" (1575 mm) | 5 | 27 KW | 60 |

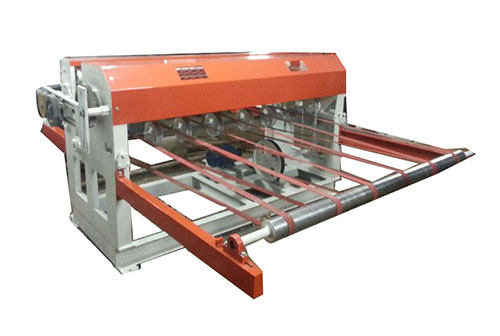

Reel to Sheet Cutting Machine
Rotary sheet cutter is designed for high production sharp cutting of a ply corrugated board without damaging flutes as well as cut line paper.
Technical Data:
| Size | Motor (H.P.) | Cutting Length | Output Sheet Per minute |
| 52" (1320 mm) | 2 | 20/80 | 20/60 |
| 62" (1575 mm) | 2 | 20/80 | 20/60 |
| 72" (1828 mm) | 3 | 20/80 | 20/60 |

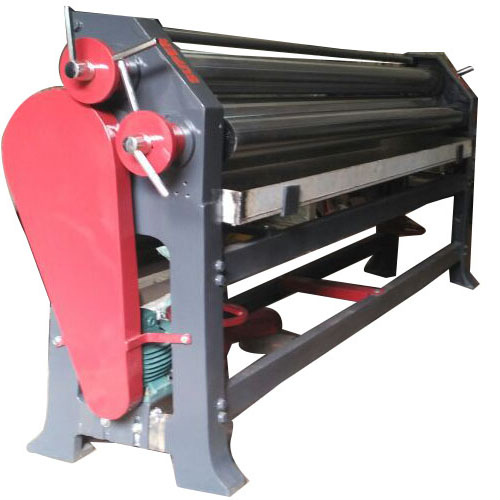

Sheet Pasting Machine
This machine is meant for the gluing of 2 ply corrugated sheets to make corrugated board of different ply. The rolls of the machine are evenly finished to ensure even gluing of the boards. this machine is simply designed, strong in construction and is easy to operate. Hard chromed Rolls are optional with this machine.
Technical Data
| Size | Sheet Feed | Motor H.P |
| 65" | 15"/60" | 0.5 |
| 75" | 15"/70" | 0.5 |
| 85" | 15"/80" | 0.5 |
| 95" | 15"/80" | 0.5 |
| 105" | 15"/80" | 1 H.P |

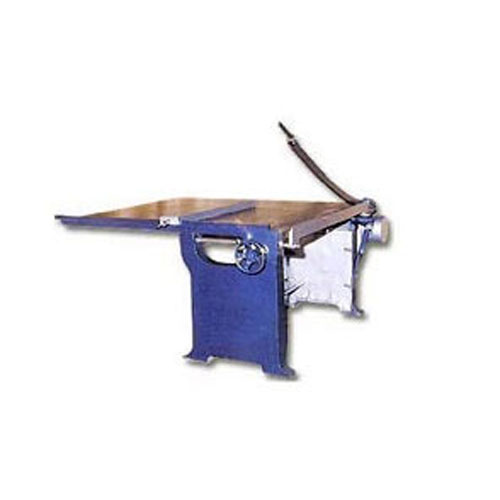

Board Cutter
Heavy duty hand operated machine for Cutting of Corrugated Board and Plain Paper.
Technical Data :
| Size | Wt. App. (kgs) | Floor Space |
| 42" x 62" | 600 | 4' x 6' |
| 52" x 62" | 700 | 5' x 6' |
| 62" x 62" | 800 | 6' x 6' |

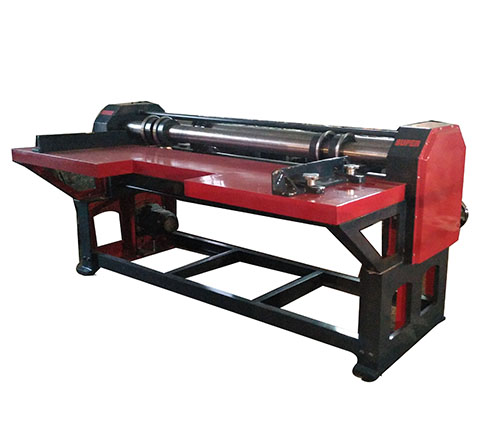

Four Bar Rotary Cutting and Creasing Machine
This machine is meant for trimming and creasing the corrugated board simultaneously. The machine is easy to operate & sturdy in construction. The creasing heads & cutting heads can be easily set as required. The platform is provided with 2 side Gauges for feeding of the board. Gauges are provided for accurate cutting & creasing of sheets.
Technical Data :
| Size | Sheet Feed Min./Max | Motor H.P |
| 65" | 15"x70" | 2 |
| 75" | 15"x80" | 3 |
| 95" | 15"x80" | 3 |
| 105" | 15"x80" | 5 |

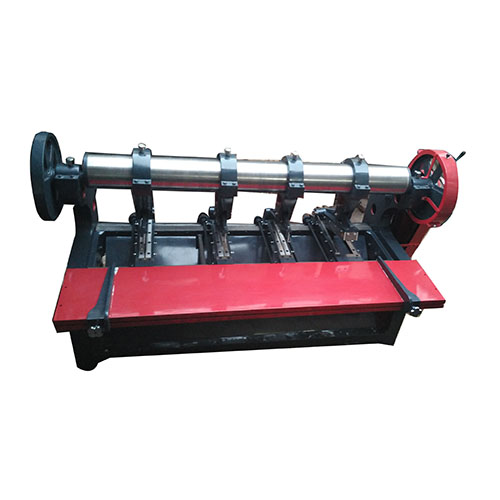

Eccentric Slotter
This machine is meant to slot & corner cut the corrugated board simultaneously. The machine is provided with three slotting heads and one corner head. These heads can be easily set by means of gear rack mechanism provided with the machine. Screw are provided on the slotting head for adjusting the side cutters.
Technical Data :
| Size | Slot Depth Max. | Dist. Between 2 Slots (Min.) | Motor H.P |
| 75" | 18" | 5" | 3 |
| 85" | 18" | 5" | 3 |
| 95" | 18" | 5" | 3 |
| 105" | 18" | 5" | 5 |

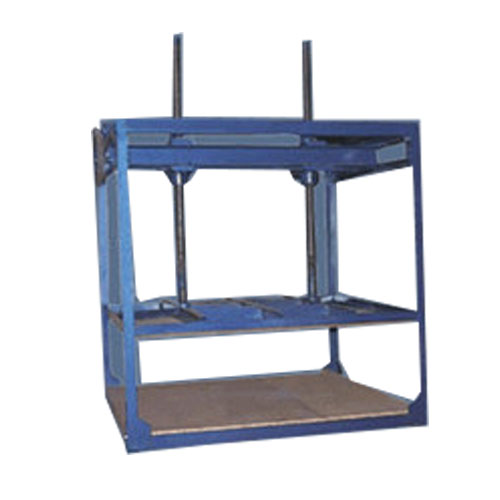

Sheet Pressing Machine
Sheet pressing machine is used for pressing of corrugated sheet. The glued sheets which are then processed on pasting machine are piled on lower plate & then pressure is applied foe some time by lowering upper plate.
Technical Data :
| Size | 65"x75" | 65"x105" | 75"x120" |
| H.P. Reqd | 2 H.P. | 2 H.P. | 3 H.P |

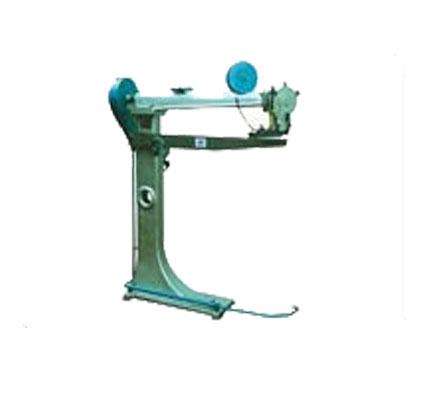

Box Stitching Machine
The machines are study compact in design and simple in operation and maintenance. The components are made of highest standard of appropriate metals are given precise heat treatment. The machine are perfectly accurate the parts are interchangeable.
Technical Data :
| Size | Motor (H.P) |
| 30" (762 mm) | 0.5 |
| 36" (914 mm) | 0.5 |
| 42" (1066 mm) | 0.5 |
| 48" (1219 mm) | 0.5 |

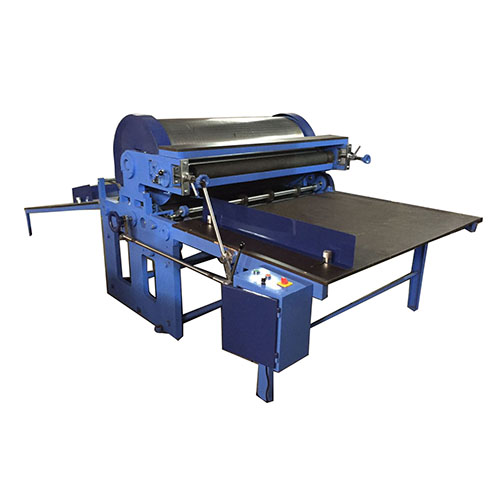

Flexo Board Printer Single / Two Color
Single / Two Color Flexo Printer Flexo Printer are designed to help Corrugated Packaging manufacturer to keep pace with the demand for sharp and excellent printing on corrugated boxes in corpora ting the latest technology, flexo prints better and makes the sheets dry faster, resulting in increased production.
Technical Data :
| Size | Motor (H.P.) |
| 50"x74" (1320x1828 mm) | 3 |

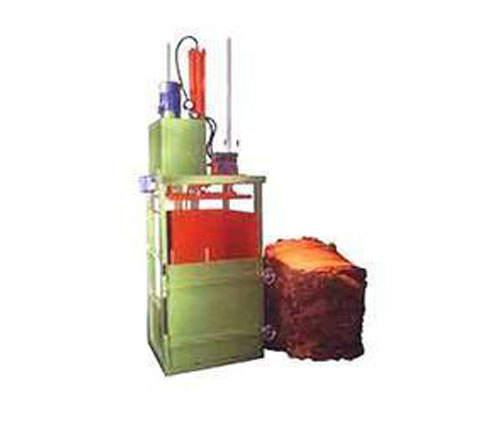

Hydraulic Baling Press with Auto Ejection System
Our hydraulic bailing press machine are capable of high speed operation and have higher productivity.
Technical Data :
| Bale Size | 600mm (L) x 600mm (W) x 900mm (H) |
| Motor H.P. | 2 H.P. |
| Bale Weight | 35 Kg to 115 Kg |
