Paper Cutting Machine

We are offering a wide array of Paper Cutting Machines to our clients. These machines are available in varieties of automatic, semi-automatic, hydraulic, and ordinary paper cutting machines. These can be availed from us at market leading prices.

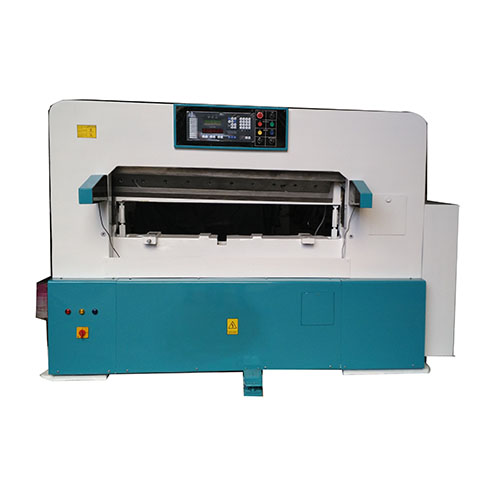

Fully Automatic Hydraulic Programmable Paper Cutting Machine

We provide to our clients Hydraulic Programmable Paper Cutter which is made of good quality raw material.

Best quality material are used to withstand wear, stain and stress.
Sound less Compaq gear box having oil dipped worm gears fitted with taper roller thrust bearings and bronze bushes.
The machine is provided with mechanical device to avoid serious damage by providing overload bolt.
Two row five beams infra-red curtain in front of cutting zones to avoid accident. Back gauge running on precision grounded guides for speedy & precise movement and also provided with A.C. drive system for accuracy smooth and uniform movement.
Hydraulic clamping pressure can be adjusted from 200 kgs. to 3500 kgs.
Program controlled air cushion table to facilitate easy movement to heavy stock.
A beam of light falls across the Knife width on the paper to be cut without lowing the clamp to ensure proper cutting.
The storage capacity of the program is 99 programs & each program capacity is 99 cuts.

Technical Specifications:

Size of Machine	IMC-83 cm	IMC-92 cm	IMC-1 15 cm	IMCO-132 cm
Cutting width/length	83 cm	92 cm	115 cm	132 cm
Pile Height	4 ½'	5"	5 ½'	6"
Speed r.p.m.	42 cycles	42 cycles	40 cycles	38 cycles
Clamping Pressure	100/3700 kgs.	100/3700 kgs.	200/3700 kgs.	200/4000 kgs.
Power Required	5 H.P	7 H.P.	7 H.P	9.5 H.P
Machine L x W x H	75"x85"x58"	80"x90"x60"	90"x102"x62"	99"x110"x68"
Nett. Weight approx.	1.8 Ton	2 Ton	2.8 Ton	3.5 Ton

Standard Equipments: Two knives, Air Floating Table, Photo Electric Safety Guide, Set of tools.

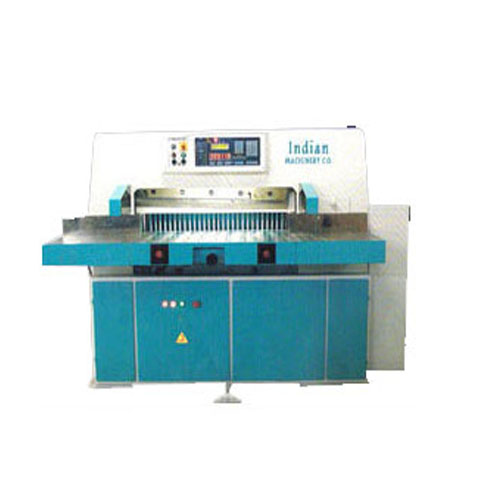

Semi Automatic Paper Cutting Machine

Semi Automatic High Speed Paper Cutting Machine driven by oil bath worm gear box , electro magnetic clutch & break with motorize clumping & motorize gauge .

Technical Specifications:

Size of Machine	IMC-83cm	IMC-94cm	IMC-109cm	IMC-132cm
Cutting Width/Length	83cm	94cm	109cm	132cm
Cutting Thickness	4 ½'	4 ½'	5”	5½”
Speed r.p.m	40 cycles	40 cycles	38 cycles	36 cycles
Power required	3 ½	5 ½ H.P.T.P	5 ½ H.P.T.P96”	6½' P.T.PH.
Machine Lx Wx H	79” x68” x 58”	88” x76” x55”	96” x82” x57”
Nett Weight	1.6 Ton	1.8 Ton	2.2 Ton	2.5 Ton

Size of Machine	IMC-83cm	IMC-94cm	IMC-109cm
Cutting Width/Length	83cm	94cm	109cm
Cutting Thickness	4 ½'	4 ½'	5”
Speed r.p.m	40 cycles	40 cycles	38 cycles
Clamping pressure	1kgs 00/3700	100/3700 kg	200/3700 kgs
Power required	3 ½	5 ½ H.P.T.P	5 ½ H.P.T.P
Machine Lx Wx H	79” x68” x 58”	88” x76” x55”	96” x82” x57”
Nett Weight	1.6 Ton	1.8 Ton	2.2 Ton
