Heavy Duty Platen Die Cutting Machine

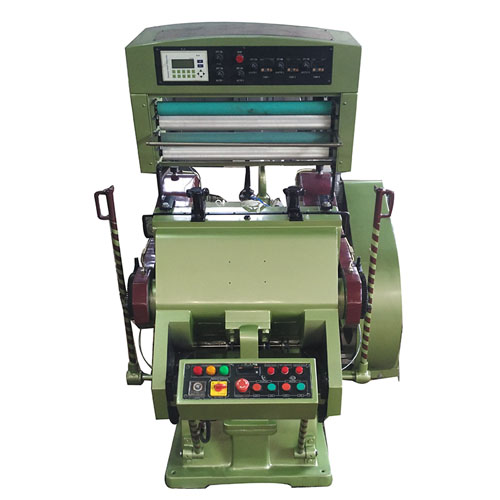

We are a leading company for the manufacture and export of a supreme quality range of Die Cutting Machines. As their name suggests, these machines find extensive application in the dyeing industry. Two types of machines are available under this range – Heavy Duty Platen Die Cutting Machines and Heavy Duty Die Cutting Machines (With Hot Foil Stamping Attachment

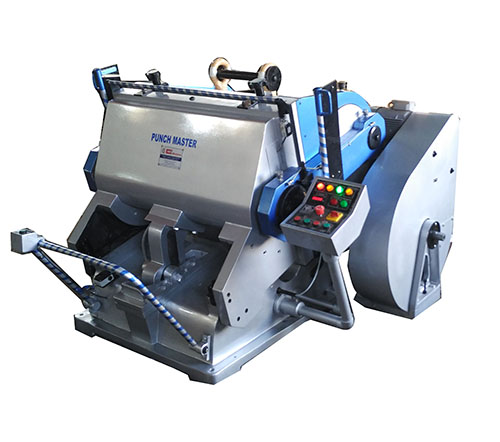

Heavy Duty Platen Die Cutting Machine
-
The Machine is particularly designed for heavy jobs of cutting, creasing & embossing of Card Board, Corrugated board, Plastic & PVC materials etc. and also performs half cutting jobs.
-
Quality C.I. Castings & other raw materials are used suitable for every part of the Machine such as main gears, helical gears, cam and shafts etc. and all rotating parts are provided with adequately dimensioned SKF/NBC Bearings & Phosphorus Bronze Bushes.
-
All parts are precisely machined to ensure absolute accuracy.
-
Specially designed electromagnetic clutch & brake enable push button control the machine for easy and efficient operation.
-
Complete safety is ensured by electrical inter-locking automatic time delay from 0.5 seconds to 10 seconds.
-
Advanced designed Electric Control Panel with international standard components i.e. Siemen / L&T etc.
Optional -: Variable speed drive
| Inside Chase (Inches) | 20"x 26" | 22"x 32" |
25"x |
29"x |
32"x 42" | 37"x 51" | 42"x 62" | 52"x 72" | |
| Inside Chase (mm) | 508x 660 | 559 x 815 |
635x |
736x |
813 x 1067 | 939 x 1295 | 1067 x 1575 | 1321 x 1829 | |
| Size of Platen (Inches) | 23"x 29" | 25"x 35" |
28"x |
32"x |
36"x 46" | 41"x 55" | 46"x 66" | 54"x 76" | |
| Size of Platen (mm) | 584x 737 | 635 x 889 |
711 |
813 |
914 x 1168 | 1041 x 1397 | 1168 x 1676 | 1372 x 1930 | |
| H.P Required | 3 H.P | 3 H.P |
5H.P |
5H.P |
7.5 H.P | 7.5 H.P | 10 H.P | 15 H.P. | |
| Imp. Per Hrs. | 1700 | 1600 |
1500 |
1400 |
1300 | 1100 | 1000 | 800 | |
| Nett. Weight approx. | 2.6 Ton | 3.2 Ton |
3.6 |
4.0 |
5.4 Ton | 6.5 Ton | 9 Ton | 12 Ton | |
| Floor Space (Inches) | 68"x 57" | 74"x 65" |
82"x |
83"x |
86"x 78" | 90"x 82" | 95"x 93" | 105"x 103" | |
Standard Equipments: Two Steel Chases, One M.S Plate,One steel of Tools
Optional Attachment: Automatic Centralized Lubrication System, Hardened and Grounded-true make ready plate. Adjustable Chase.
